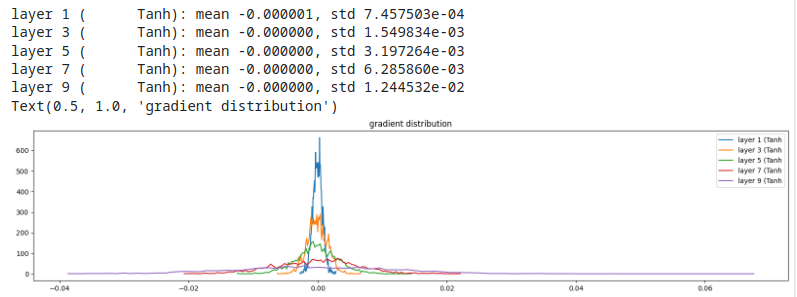

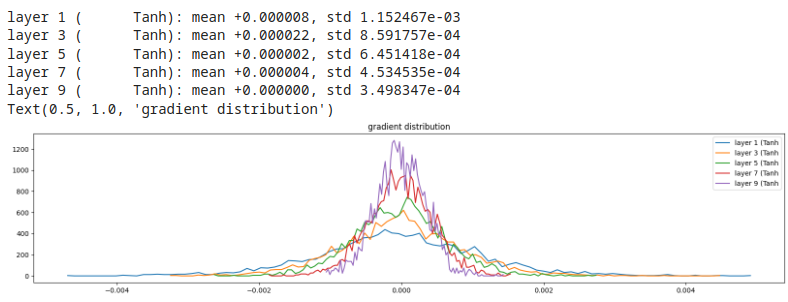

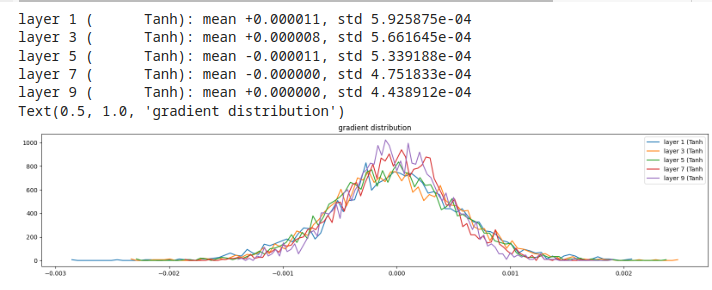

Backward pass statistics

Esempio
Ragionando sugli hidden layer, monitoriamo i gradienti delle funzioni di attivazione (tanh()).
Ci interessa conoscere la media e la deviazione standard.

# visualize histograms for backward pass...
plt.figure(figsize=(20, 4)) # width and height of the plot
legends = []
for i, layer in enumerate(layers[:-1]): # note: exclude the output layer
  if isinstance(layer, Tanh):
    t = layer.out.grad
    print('layer %d (%10s): mean %+f, std %e' % (i, layer.__class__.__name__, t.mean(), t.std()))
    hy, hx = torch.histogram(t, density=True)
    plt.plot(hx[:-1].detach(), hy.detach())
    legends.append(f'layer {i} ({layer.__class__.__name__}')
plt.legend(legends)
plt.title('gradient distribution')
